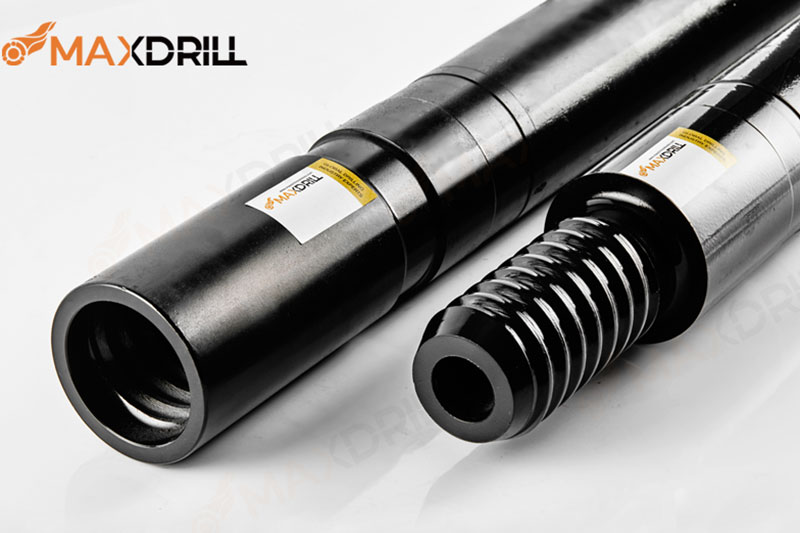

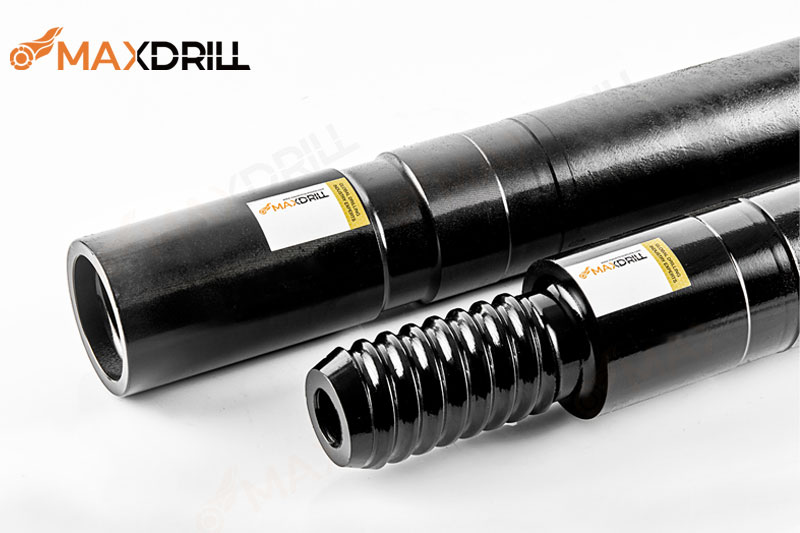

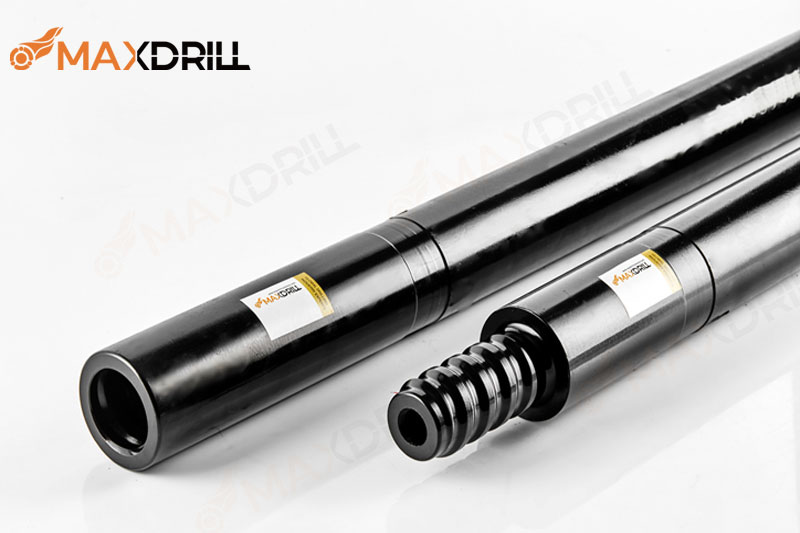

The use of guide tubes in underground deep hole drilling result in straighter holes, which increases the drilling efficiency and reduces operating costs.
Thread ends of the rods are made of quality materials and processed with heat treatment, which can reduce dents in thread ends and extend service life;
Risk of thread end breakage is reduced;
Less thread wear on the outer and inner sides of rod ends increases use efficiency and service life;
Tight tolerance of rods ensures safety, durability and high quality.

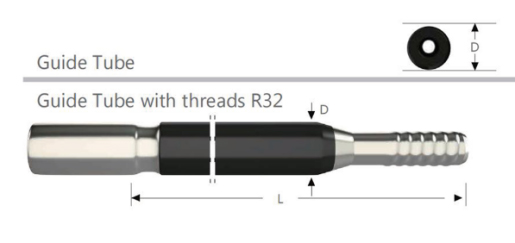

Specification of Guide Tubes
Dimensions L
Dimensions D
Part NO.
mm
ft
in
mm
in
1120
4
-
45
1 3/4
2245R32MF12
1830
6
-
45
1 3/4
2245R32MF18
3050
10
-
45
1 3/4
2245R32MF30
Request a Quote

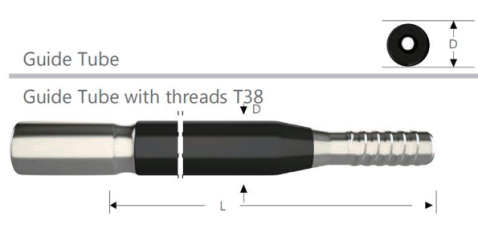

Dimensions L
Dimensions D
Part NO.
mm
ft
in
mm
in
1220
4
-
56
2 1/8
2256T38MF12
1525
5
-
56
2 1/8
2256T38MF15
1830
6
-
56
2 1/8
2256T38MF18
3050
10
-
56
2 1/8
2256T38MF30
3660
12
-
56
2 1/8
2256T38MF36
Request a Quote

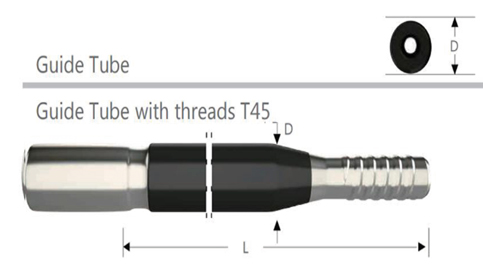

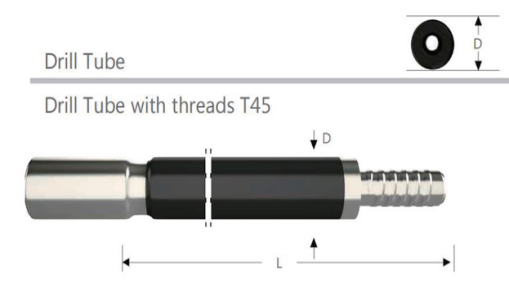

Dimensions L
Dimensions D
Part NO.
mm
ft
in
mm
in
1525
5
-
64
2 1/2
2264T45MF15
1830
6
-
64
2 1/2
2264T45MF18
3660
12
-
64
2 1/2
2264T45MF36
1830
6
-
76
3
2276T45MF18
3660
12
-
76
3
2276T45MF36
Dimensions L
Dimensions D
Part NO.
mm
ft
in
mm
in
1525
5
-
64
2 1/2
2464T45MF15
1830
6
-
64
2 1/2
2464T45MF18
Request a Quote

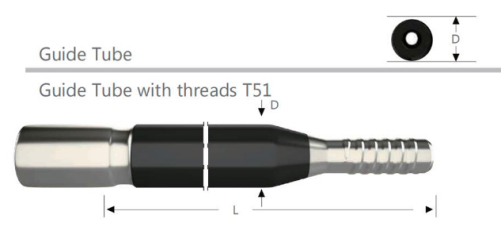

Dimensions L
Dimensions D
Part NO.
mm
ft
in
mm
in
1525
5
-
76
3
2276T51MF15
1830
6
-
76
3
2276T51MF18
3660
12
76
3
2276T51MF36
3660
12
87
3 1/2
2287T51MF36

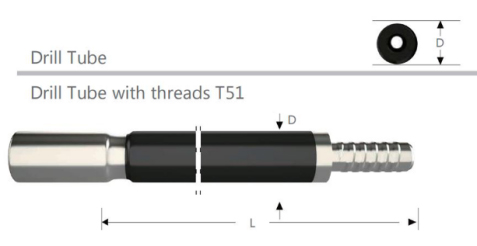

Dimensions L
Dimensions D
Part NO.
mm
ft
in
mm
in
1525
5
-
76
3
2476T51MF15
1830
6
-
76
3
2476T51MF18
Request a Quote

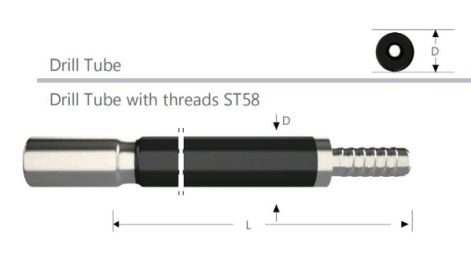

Dimensions L
Dimensions D
Part NO.
mm
ft
in
mm
in
1525
5
-
76
3
2476ST58MF15
1830
6
-
76
3
2476ST58MF18
Request a Quote

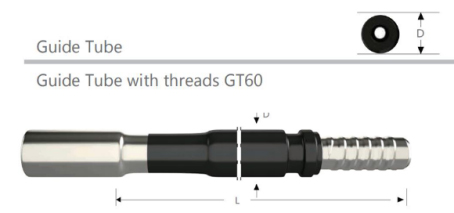

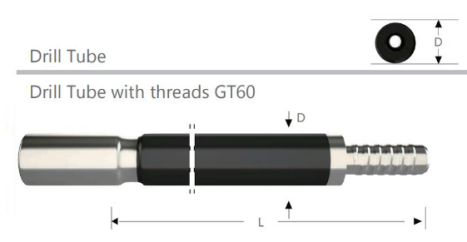

Dimensions L
Dimensions D
Part NO.
mm
ft
in
mm
in
3660
12
-
87
3 1/2
2287T60MF36
4270
14
-
87
3 1/2
2287T60MF42
6095
20
87
3 1/2
2287T60MF60
Dimensions L
Dimensions D
Part NO.
mm
ft
in
mm
in
3660
12
-
87
3 1/2
2487T60MF36
4270
14
-
87
3 1/2
2487T60MF42
Request a Quote
Dimensions L
Dimensions D
Part NO.
mm
ft
in
mm
in
1525
5
-
87
3 1/2
2487ST68MF15
1830
6
-
87
3 1/2
2487ST68MF18
Request a Quote
