Friction Bolts

Friction Bolts

Maxdrill has developed its friction bolts which are mainly used as the simple and cost-effective form of ground support. Friction bolts have become available in mining and tunneling for decades.

Highlights
  • Made of high-tensile steel;
  • Parts and accessories are provided;
  • Processed with Hot-dip galvanizing technology;
  • The bolt as a whole can provide ground support and improvement in rock stability.
Request a Quote
Friction Bolts
Applications
  • Mine roof and rib support
  • Pillars
  • Water tunnels
  • Shaft walls
  • Mine tunnels
  • Underground storage caverns
  • Road tunnels
  • Pipe and ventilation ducts
  • Conveyor Belts
  • Wire roller
  • Excavation slope
  • Highway cuts

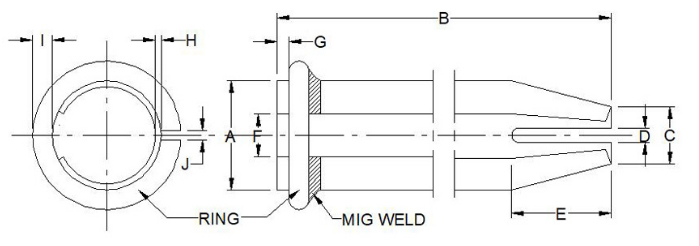

Specifications
Model FB-33 FB-39 FB-47
Bolt Diameter A 33mm 39mm 47mm
Bolt Length B 600-3000mm 600-3000mm 600-3000mm
Taper End Diameter C 28mm 30mm 38mm
Taper Slot Wide D 2mm 2mm 2mm
Taper Length E 60mm 65mm 65mm
Bolt Slot Wide F 12mm 17mm 25mm
Ring Location G 3mm 3mm 8mm
Material Guage H 2.0-2.5mm 2.0-2.5mm 2.5-3.2mm
Ring Wire Guage I 6mm 6mm 8mm
Ring Open Gap J 5.0-6.0mm 5.0-6.0mm 6.0-7.0mm
